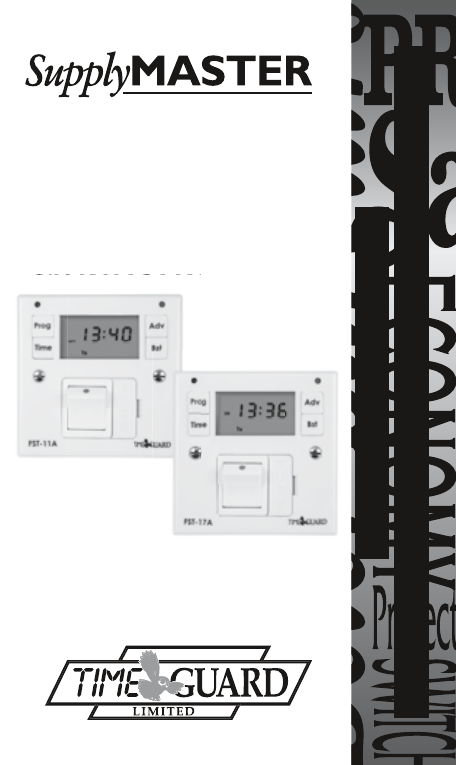

INSTALLATION & OPERATINGINSTRUCTIONS FUSED SPUR TIMESWITCH Cat No. FST11A – 24 HourCat No. FST17A – 7 DayInstallation & OperatingInstructionsC

9. Programming the ON/OFF Times – FST11A only10. Operating Mode10.1 Override until Next Program Change10.2 1 and 2 Hour BoostThe FST11A is similar

FUSED SPUR TIMESWITCH Cat No. FST11A – 24 HourCat No. FST17A – 7 Day Installation & Operating Instructions11. SpecificationsThis product complie

HELPLINE020-8450-0515or email [email protected] a product brochure please contact:Timeguard Ltd.Victory Park, 400 Edgware Road,London NW2 6ND

Status LEDReset button (recessed)Sets programmesSets date and timeDisplay (back lit for 30 seconds when any button is pressed)Double pole switchBS 13

2. BatteryThe unit has an in-built non-replaceable, rechargeable battery, which will keep the programmed times during power down situations for up to

4. Installation5. FuseUse the appropriate BS 1362 fuse for the load. The unit is supplied with a suitable 13A fuse.The unit is designed to replace an

7. Setting the Date and Time of Day7.1 Initially Setting the Date and Time of DayPress the ‘Time’ button and hold for approx. 2 seconds. Whilst holdin

Press the ‘Time’ button and the day digits will flash:–Use ‘Adv’ or ‘Bst’ to set the day.Press the ‘Time’ button and the hour digits will flash:–Use ’

7.2 Modifying the Date and Time of DayNormally the only change required will be to the time of day minutes, in which case press and hold ‘Time’ for 2

Once the desired day grouping is selected, press ‘Prog’ to move onto programming ON/OFF times.Display will show prog 1 ON, and the hour digits flashin

Press ‘Prog’ and hold for approx. 2 seconds. Whilst holding, the word ‘HOLD’ will appear in the top left hand corner of the display. After 2 seconds
