Status LED

Reset button

(recessed)

Sets

programmes

Sets date

and time

Display (back lit for 30 seconds

when any button is pressed)

Double pole

switch

BS 1362 (1"x

") fuse

Fixing hole

Boost for 1 or 2

hours and

decrements

displayed value

during time and

programme

setting

Override until

next programme

change and

increments

displayed value

during time and

programme

setting

1. General Information

Contents:

1 Supplymaster.

2 3.5mm screws.

1 Bag containing: 2 screws, cable blank and cable clamp.

1 Instruction leaflet.

The FST11A (24 hour) and FST17A (7 day) are units which mount onto a

BS 4662 flush mount single box, or a BS 5733 surface mount single box (25mm deep

in either case). There is provision for a single front exit output cable, with in-built

cable clamp.

The unit combines the facilities of a time switch and a double pole switched, fused

connection unit capable of being wired directly into a ring main. The contacts are not

volt free, and there is no provision for a permanent ON, or for earth continuity (for

which the back box termination can be used if required). The unit has automatic

daylight saving pre-programmed in.

8888

TimeDayMonthYear

MODE BOOST 12

Prog Adv

FST-17A

Time Bst

Mo Tu We Th Fr Sa Su

Prog

OFF

SET

HOLDHOLD

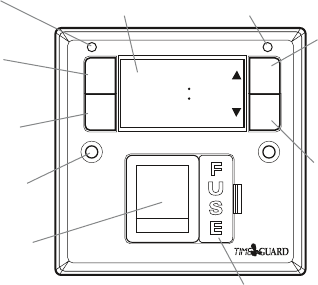

Fig. 1

FST17A/FST11A Front Panel
